Tonglu Archives Building by BAU (Brearley Architects + Urbanists)

‘it is the least we could do: minimalism in an environment of expressionism’ – Steve Whitford (Partner)

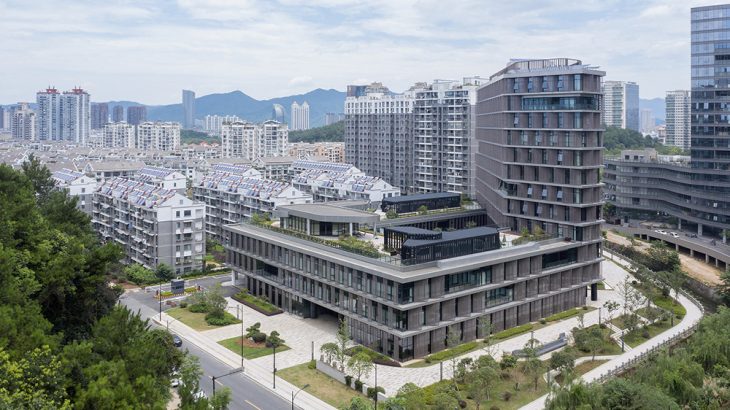

Tonglu Archives Building by BAU (Brearley Architects + Urbanists)
Photography by © Xia Zhi

BAU (Brearley Architects + Urbanists) recently completed their latest architecture design project in Hangzhou, China – Tonglu Archives Building. Take a look at the complete story after the jump.

Tonglu Archives Building by BAU (Brearley Architects + Urbanists)
Photography by © Xia Zhi

From the architects: In China, the perimeter block typology doesn’t usually return the Floor Area Ratio (FAR) necessary to satisfy inner urban densities. This leads to an over reliance on detached towers to meet FAR requirements. The perimeter block with a tower extrusion however, presents a useful hybrid.

The advantages of the perimeter block (positive reinforcement of active urban street edges; well ventilated and naturally lit building interiors; and an internal courtyard that has the options of being private, semi-private-semi-public, or public space) are combined with the capacity of the tower to maximize floor area.

Tonglu Archives Building by BAU (Brearley Architects + Urbanists)
Photography by © Xia Zhi

being a good neighbor

Urban form for this project was driven by the need to maintain strict solar access requirements to the neighbouring buildings. The low perimeter block did not impact solar access, however, the tower extrusion proved much more difficult to locate. Its final position exposes long east and west facades to low altitude summer sun.

Tonglu Archives Building by BAU (Brearley Architects + Urbanists)
Photography by © Xia Zhi

metal petals

Surprisingly, all facades required vertical screens to prevent unwanted heat gain. Elegantly thin slab edges are projected past the window line and form horizontal ledges on which to sit vertical perforated metal sunscreens. These screens are closed enough to block the sun, yet open enough to not impede views out.

En masse, these sunscreens present as a series of metal petals covering unified facades.

Decks are then cut into the petals to provide outdoor space for each floor level, and subtle visual relief to the wall of petals.

Tonglu Archives Building by BAU (Brearley Architects + Urbanists)
Photography by © Xia Zhi

minimalism 1. – expressionism 0.

The program for this local government building is diverse: document archives, testing laboratories, staff canteen, a commercial street-front cafe, and variety of closed and open office spaces. This suggests an architectural articulation of these programs. In addition, the typological hybrid suggests articulation of the perimeter building and the tower.

However, rather than exploring these obvious solutions, the questions posed were: What are the differences in the program? What are the differences generated by combining perimeter block and tower typologies? And finally, what is the least we need to do to engage with these differences?

The answer to this question brought about two design responses: firstly, a unified façade which fulfilled the performance criteria for solar access and protection for each of the different programs; and secondly, the location of the entries for all programs into the central courtyard space.

Tonglu Archives Building by BAU (Brearley Architects + Urbanists)
Photography by © Xia Zhi

semi-public courtyard

This centralized circulation strategy creates a semi-public outdoor space and provides opportunities for encounter and exchange amongst the different public departments. It also provides an active space for lunch in a protected courtyard landscape.

RELATED: FIND MORE IMPRESSIVE PROJECTS FROM CHINA

The courtyard directly links the public footpath of the main southern entrance to a proposed future pedestrian bridge to the north east of the site. This diagonal shortcut further reinforces the semi-public nature of the courtyard.

Tonglu Archives Building by BAU (Brearley Architects + Urbanists)
Photography by © Xia Zhi

roofscape as displaced landscape

To encourage the staff to get out of the building and enjoy the river frontage or the courtyard, the paving from the ground floor interiors flows directly into the courtyard and out to the river’s edge – a robust strategy for the future, when the ground floor develops more pubic and/or commercial programs.

The tower overlooks the roof of the perimeter block and this space provides an opportunity for a major private outdoor space for the building tenants. A garden pavilion for staff lunches or informal meetings sits within a roofscape that presents as a displaced landscape. The staff canteen opens on to this roofscape. Plant rooms have been disguised as additional garden pavilions.

Tonglu Archives Building by BAU (Brearley Architects + Urbanists)
Photography by © Xia Zhi

more visible than we think

In a commercial and retail environment where every building is trying hard to be seen as different from its neighbours, where advertising and signage are dominating streetscapes, where buildings are becoming extensions of corporate logos and marketing campaigns – a minimal, elegant and calm public building may be more visible than we think.

Project Data
Project Name: Hangzhou Tonglu Archives Building
Project Status: Completed 2019
Location: Tonglu, Hangzhou, Zhejiang Province
Client: Tonglu Urban Development and Management Co., Ltd.
Typology: Office
Program: Document archives; testing laboratories; office.

Year: 2016—2019
GFA: 26,700 m²
Construction Cost: RMB 136 million

BAU Project Team: James Brearley, Jens Eberhardt, Chen Zhiyong, Luo Huaili, Steve Whitford, Gao Weiguo, Chen Jian
Builder: Hangzhou Harbour Construction Co.,Ltd.
Engineer+Documenting LDI: China United Engineering Company

Photographer:Xia Zhi
