M+ Museum by Herzog & de Meuron

By  |

M+ Herzog Meuron

The West Kowloon Cultural District Authority has appointed Herzog & de Meuron and TFP Farrells to design the new building for M+. The project is in its early conceptual stage and will be finished throughout the upcoming years.

From the Architects:

M+ is not just another museum. M+ is a cultural centre for 20th and 21st century art, design, architecture and the moving image. As such, it embraces the entire spectrum of spaces, means of display and activities related to exhibiting and viewing these media. They range from the conventional white cube, reconfigurable spaces, screening rooms and multipurpose facilities to so-called third spaces and even an “industrial" space. It was the special request for this “industrial” space that motivated us to take a closer look at the specificity of the centre's future location. How should a post-industrial space be created from vacant land? A mere 20 years ago, the ground occupied by the West Kowloon Cultural District (WKCD) was part of the seaport. Section by section, the land has been reclaimed from the sea and the natural harbour filled with earth. This artificial piece of land is now the construction site for the new buildings of the WKCD. What can lend authenticity to reclaimed land? Paradoxically, yet another work of engineering defines the specificity of this place: the underground tunnel of the Airport Express.

Initially an obstacle that complicated planning, this distinctive feature has become the raison d'être for our project, consisting of a rough, large-scale exhibition universe which quite literally anchors the entire building in the ground.

M+ Herzog Meuron

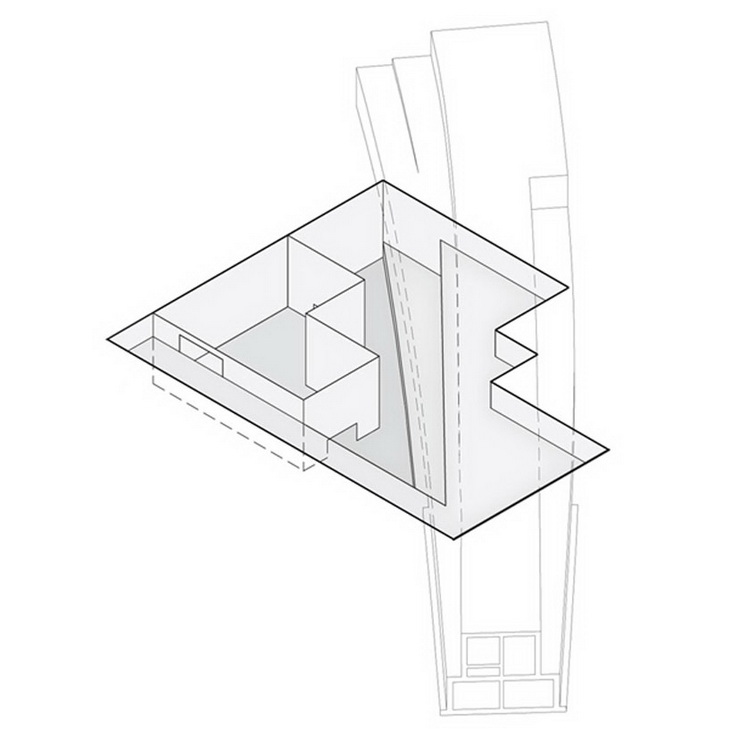

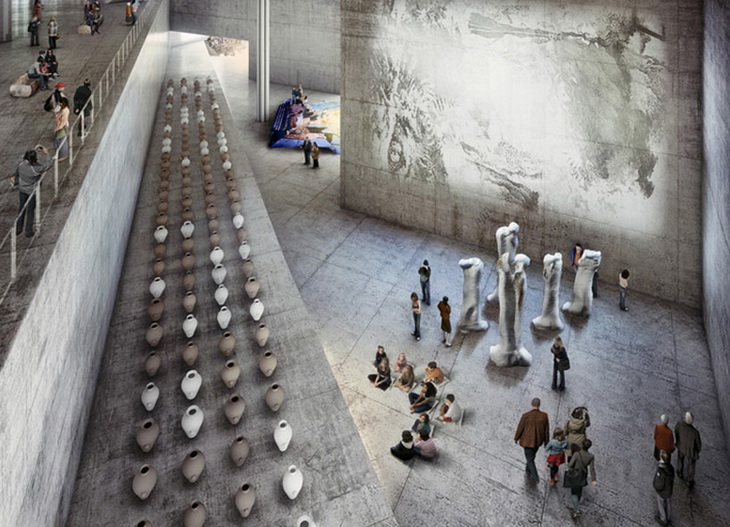

By uncovering the tunnel, a spectacular space is created for art and design, installation and performance.

M+ Herzog Meuron

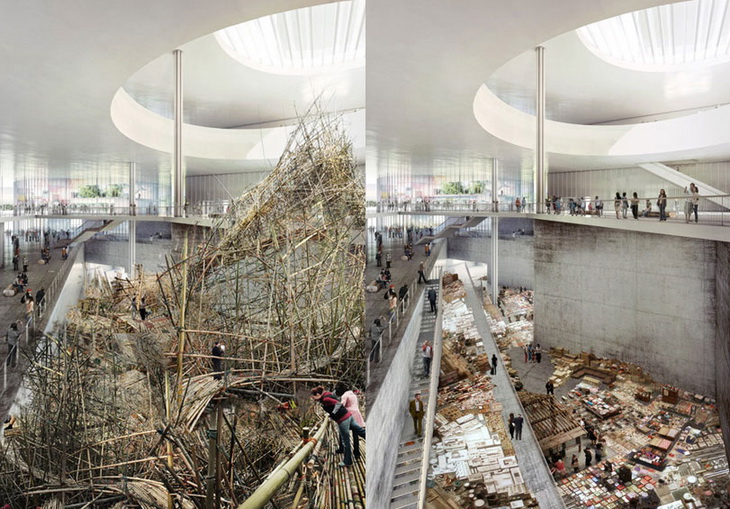

The excavations reveal nature of a “second order”, a “Found Space” that is a challenge to artist and curator alike, a space of unprecedented potential.

M+ Herzog Meuron

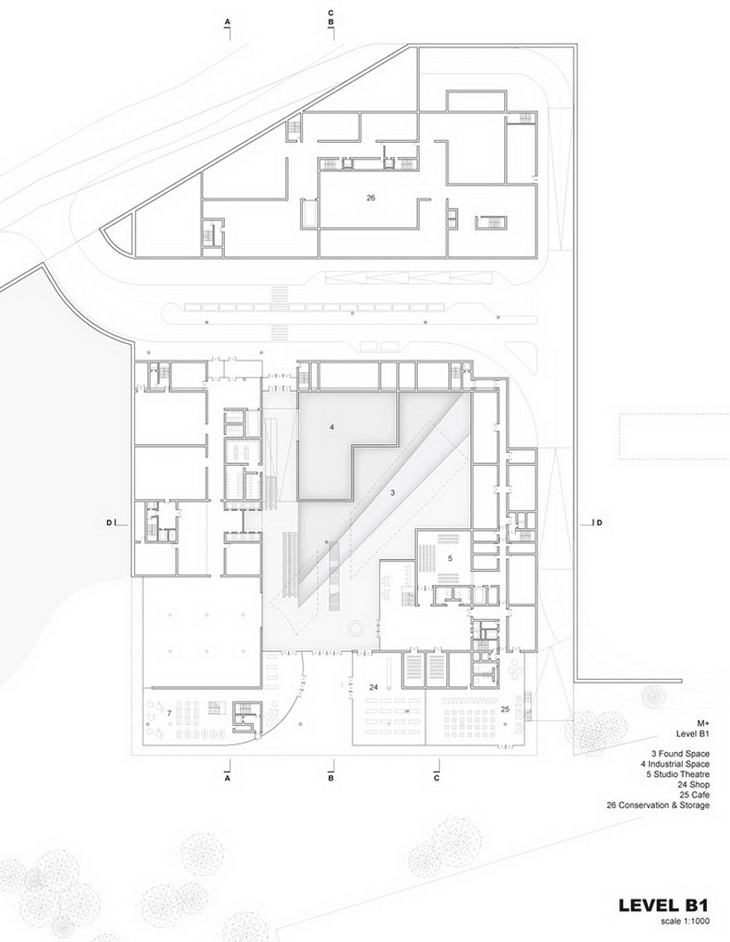

Together with an adjacent, L-shaped Black Box, a flexible, easily reconfigurable Studio Space, direct access to the loading dock and a large part of the storage area, a sunken forum and (exhibition) topography have been created, which are not only tailored to the needs of art and design in the 21st century but also set the stage for a unique art experience, inseparable from the specific character of this location.

M+ Herzog MeuronM+ Herzog Meuron

The horizontal building hovering above this “industrial” landscape houses the more conventional display spaces.

M+ Herzog Meuron

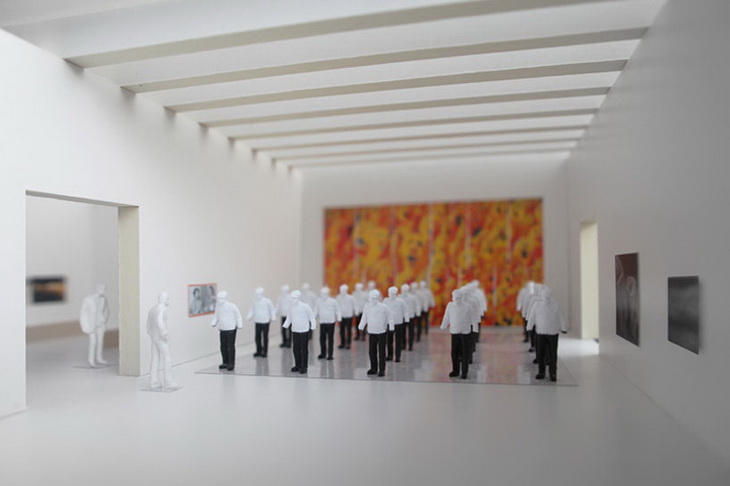

As in a city, the arrangement of all the galleries is based on an orthogonal grid. A central plaza provides direct access to the entire exhibition area.

M+ Herzog Meuron

This includes not only the temporary exhibitions but also clearly defined Anchor Rooms.

M+ Herzog MeuronM+ Herzog Meuron

A tall gallery, with two lateral bands of daylight just below the ceiling, rises out of the horizontal exhibition building and plugs into the lower part of the vertical staff and education building.

M+ Herzog Meuron

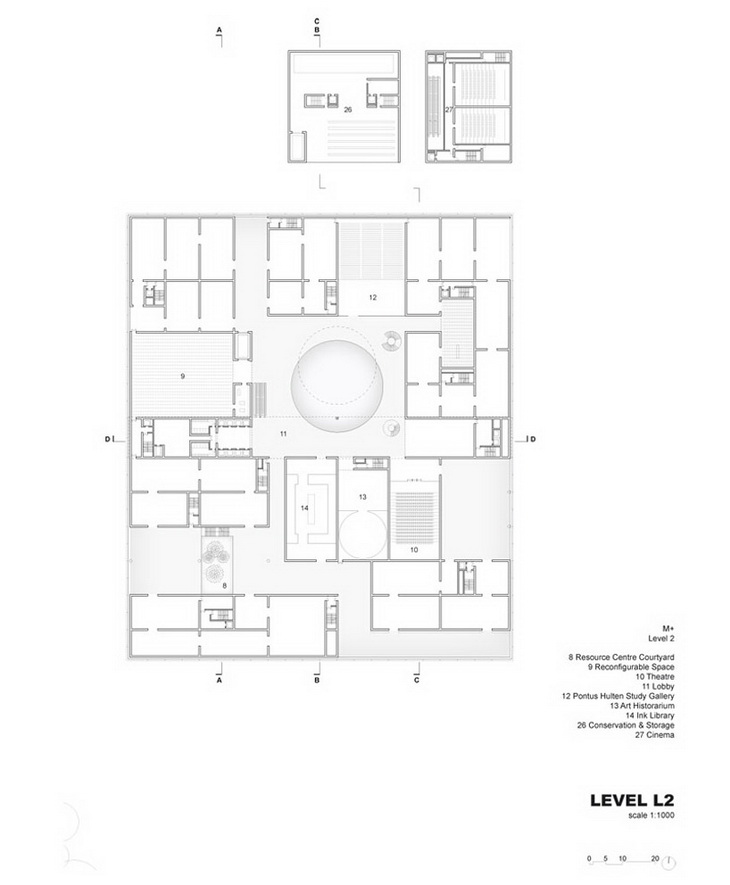

A sequence of galleries is accessed from each of the four corners of the central plaza.

A specific space introduces each sequence: an elongated sky lit gallery, a room with extensive glazing towards West Kowloon Park, an auditorium facing Victoria Harbour and a courtyard with direct access to the roof terrace.

M+ Herzog Meuron

These distinguish and structure the sequence of exhibition spaces, which can in turn be combined or divided into smaller units by additional third spaces.

M+ Herzog Meuron

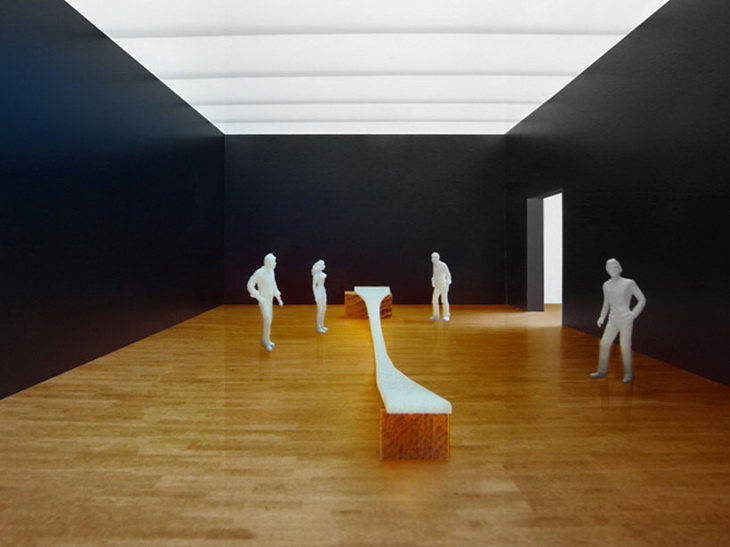

A variety of precise openings in the façade frame views of the Artist Square, the Park and the skyline of Hong Kong Island across the harbour. The galleries themselves may be illuminated from above or from the sides; they may be introverted or extroverted.

M+ Herzog MeuronM+ Herzog MeuronM+ Herzog MeuronM+ Herzog Meuron

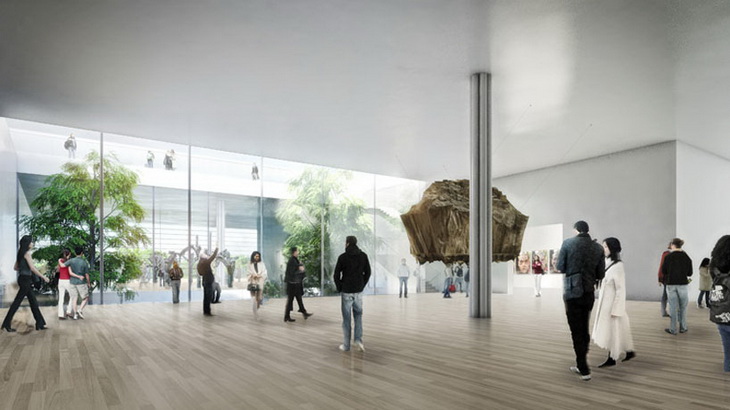

In the joint between the “Found Space” and the horizontal, floating exhibition building, there is a spacious entrance area for the public.

M+ Herzog Meuron

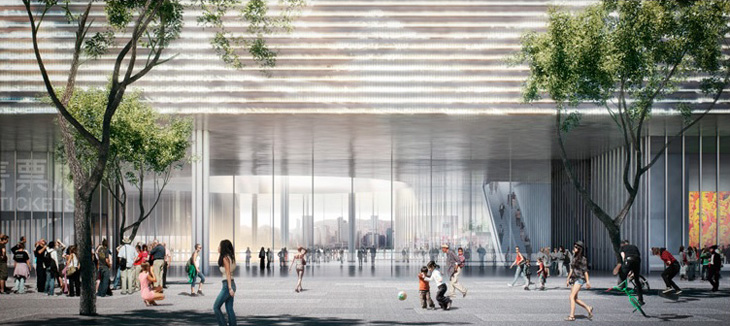

Instead of building a solid object that blocks off access, light and views, this covered area forms a bright, welcoming platform that can be entered from all sides and levels: open and transparent yet shielded from direct sunlight.

M+ Herzog Meuron

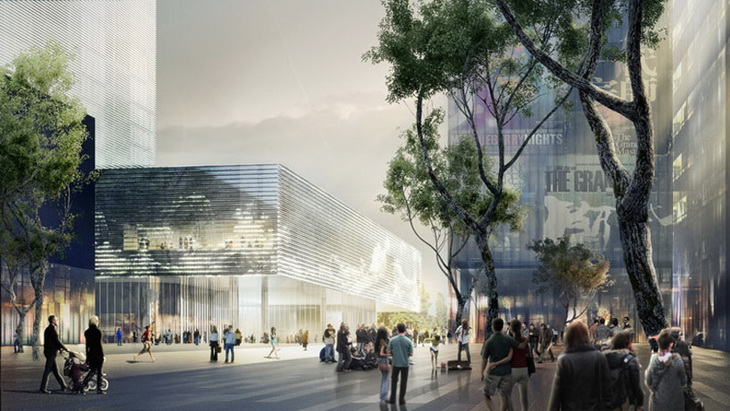

It becomes a forum and focal point between the West Kowloon Cultural District and the Park, the newly built Avenue and Victoria Harbour. Here visitors encounter all the uses and activities of M+ at a single glance.

M+ Herzog Meuron

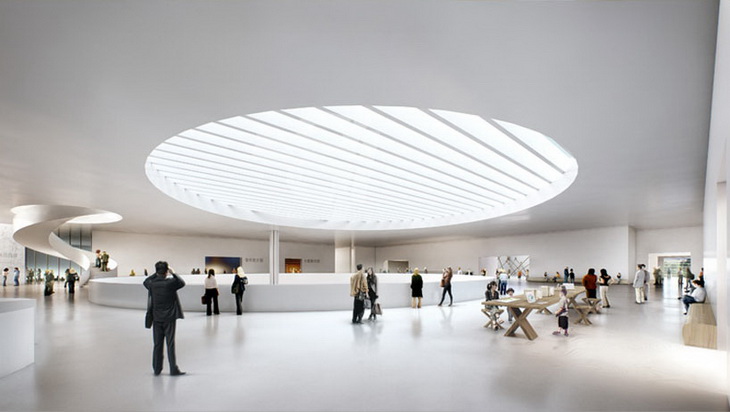

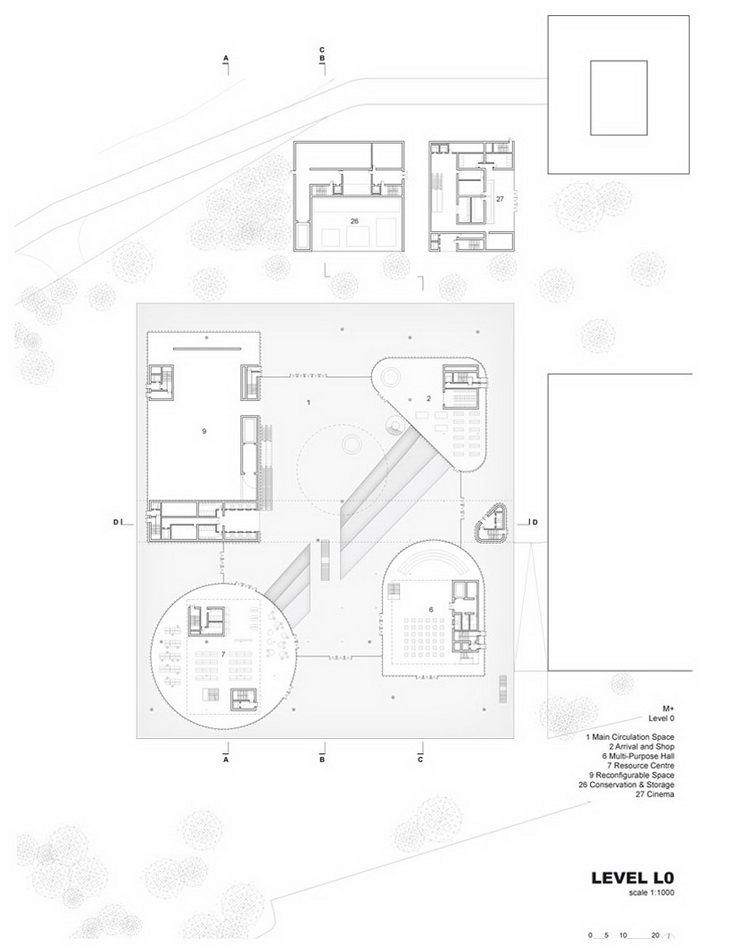

Specific functions are assigned to each quadrant of the platform. Ticketing, museum shop and information are situated in the corner next to Artist Square. The large temporary exhibition space faces the Park and is accessible directly from the main platform. Overlooking the waterfront promenade and Victoria Harbour, there are the auditorium on one side while, and on the other, the glazed rotunda of the Resource Centre receives interested visitors. A broad diagonal opening in the floor of the platform affords a view of the excavated “Found Space”. And through a large circular cut-out above, visitors see the exhibition level and also a view of the vertical building and open skies.

M+ Herzog Meuron

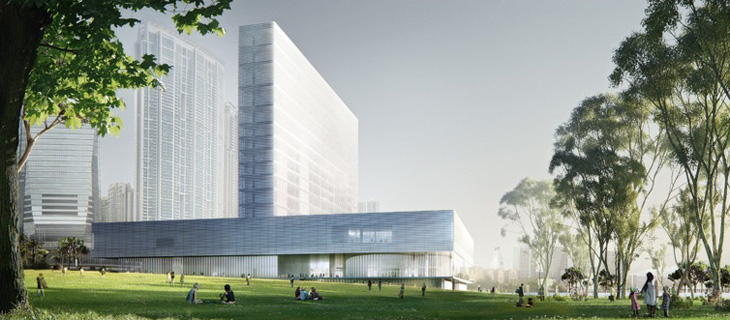

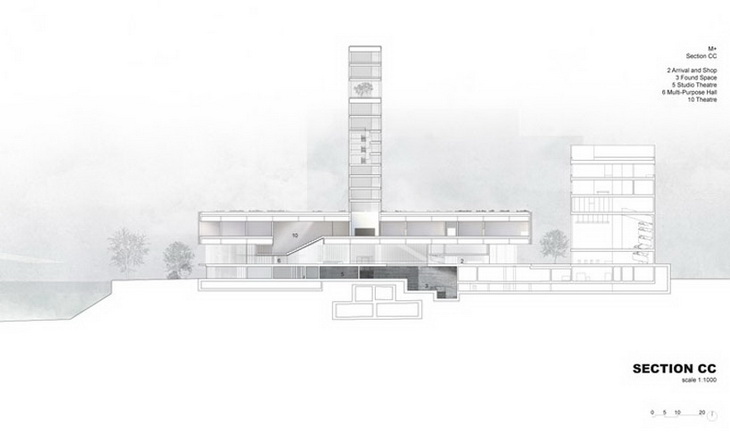

The vertical plane of the M+ building is centred on the horizontal slab of exhibition spaces and spans its entire width.

M+ Herzog Meuron

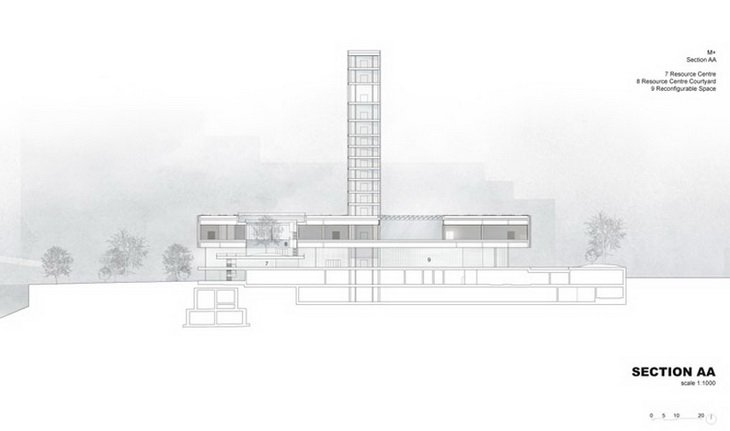

The two elements form a single entity, fused into the shape of an upside down T.

M+ Herzog Meuron

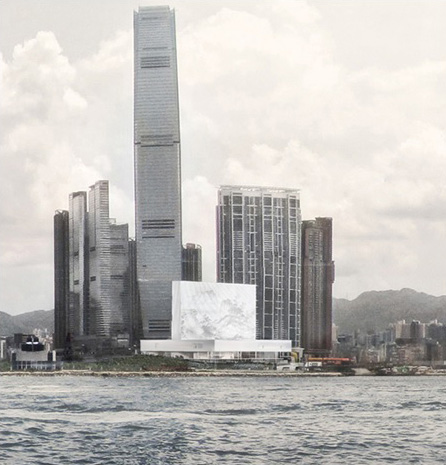

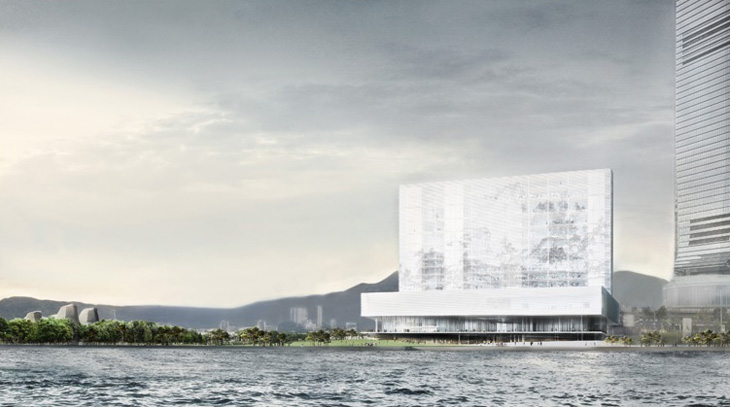

Making full use of the height specified in the master plan, the vertical building establishes M+ as part of the Victoria Harbour skyline. It is here that most of the educational facilities and museum offices are housed. Abundant daylight and expansive views make learning and working a special experience. A series of multi-storey interior courtyard spaces and meeting zones establish varied connections between front-of-house and back-of-house. The top floors of the vertical building contain restaurants, bars and a sky garden.

M+ Herzog Meuron

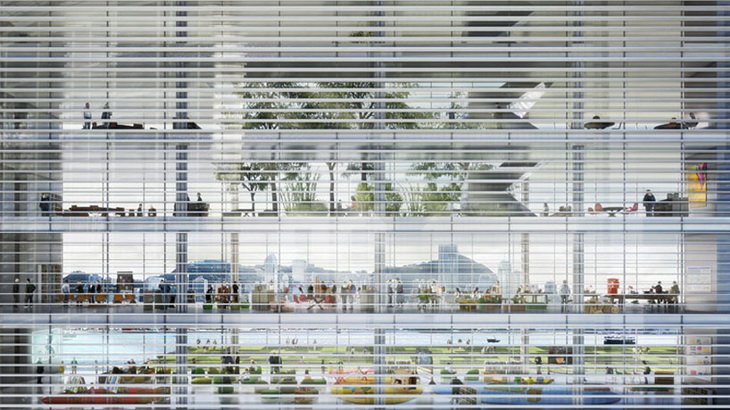

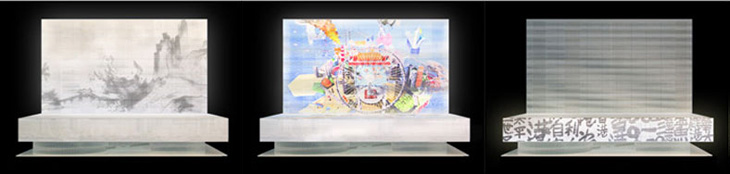

Integrated into the sun-shading horizontal louvers of the façade, an LED lighting system activates the building as a coarse-grained, oversized display screen for works of art selected by curators or created especially for M+.

M+ Herzog Meuron

The resulting structure is not simply anchored in its surroundings; it is also formed by them. The precise and urban, almost archaic, shape reiterates the iconic character of Kowloon’s skyline on one hand, yet on the other hand, this convention is subverted by the transmitted message of the art and artists, visible from afar, that will consequently make M+ a site of constant renewal, rather than being locked to a predefined form.

M+ Herzog Meuron

This is a universal place with an inner organization whose openness and transparency make it possible to link the complexities of the content and the space in many different ways.

M+ Herzog Meuron

Through its specificity, it becomes a distinctive, singular and unmistakable piece of Hong Kong. But above all, M+ is a public forum, a built platform for the exchange, encounter and activity of people and art.

M+ Herzog Meuron

The project is in its early conceptual stage and will be developed throughout the coming years.

Project: M+ Museum
Designed by Herzog & de Meuron, TFP Farrells
Location: Hong Kong, China
