Tangram pavilion No.1 – Mao Zhuang South Club by UA Studio 7

By  |  Comments

Tangram UA Studio 7

UA Studio 7's architects propose a design for the Tangram pavilion No.1Mao Zhuang South Club in HeNan, China. The design for the tangram is an assemblage puzzle consisting of seven flat pieces, called tans, which are put together to form various shapes.

Tangram UA Studio 7

From the Architects:

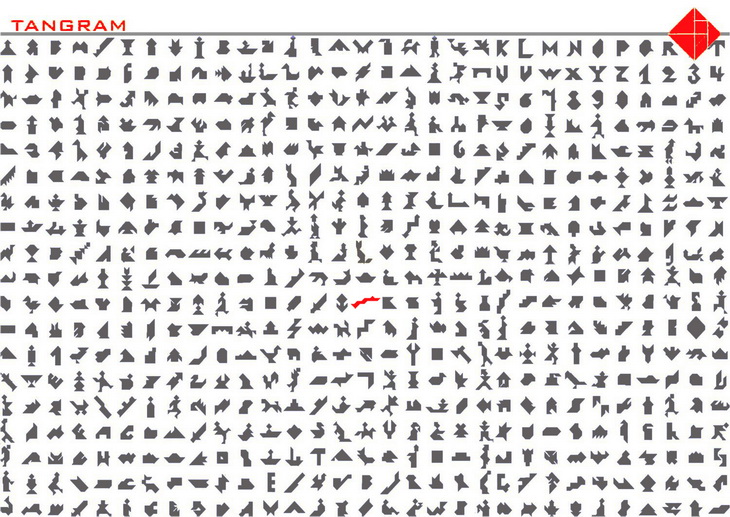

The tangram (Chinese, literally "seven boards of skill") is an assemblage puzzle consisting of seven flat pieces, called tans, which are put together to form various shapes. The objective of the puzzle is to form a specific shape (given only an outline or silhouette) using all seven pieces, which may not overlap.

Tangram UA Studio 7

Choosing a unit of measurement so that the seven pieces can be assembled to form the square of a side of one unit and having an area of one square unit, the seven pieces are: 2 large right triangles, 1 medium right triangle, 2 small right triangles, 1 square and 1 parallelogram.

Tangram UA Studio 7Tangram UA Studio 7Tangram UA Studio 7

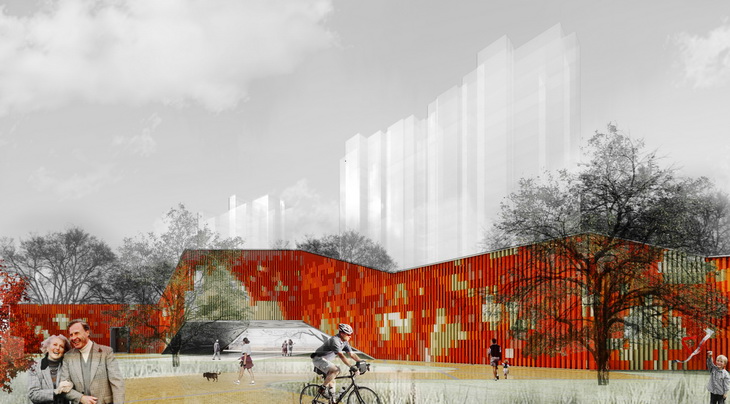

This pavilion, located in a residential compound in Henan, China is the first of a design series that draws its concept from the combination and flexibility of the tangram puzzle. This project will be followed by other similar type buildings, like clubhouses and residential community centers. Different facade materials will be applied to each clubhouse, in order to acquire a unique identity and be easily recognized within the community. The material chosen for this one is wood.

TangramTangram UA Studio 7

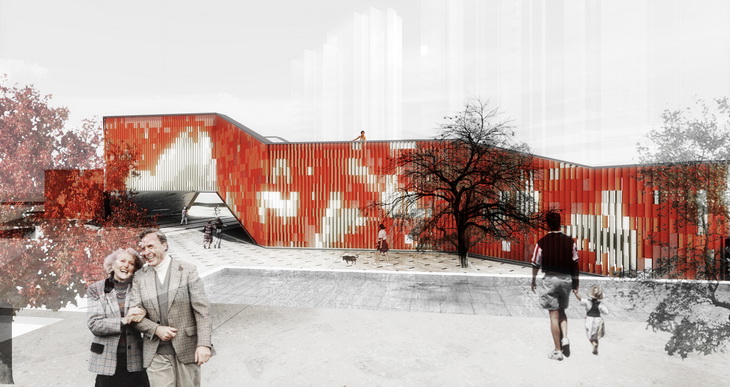

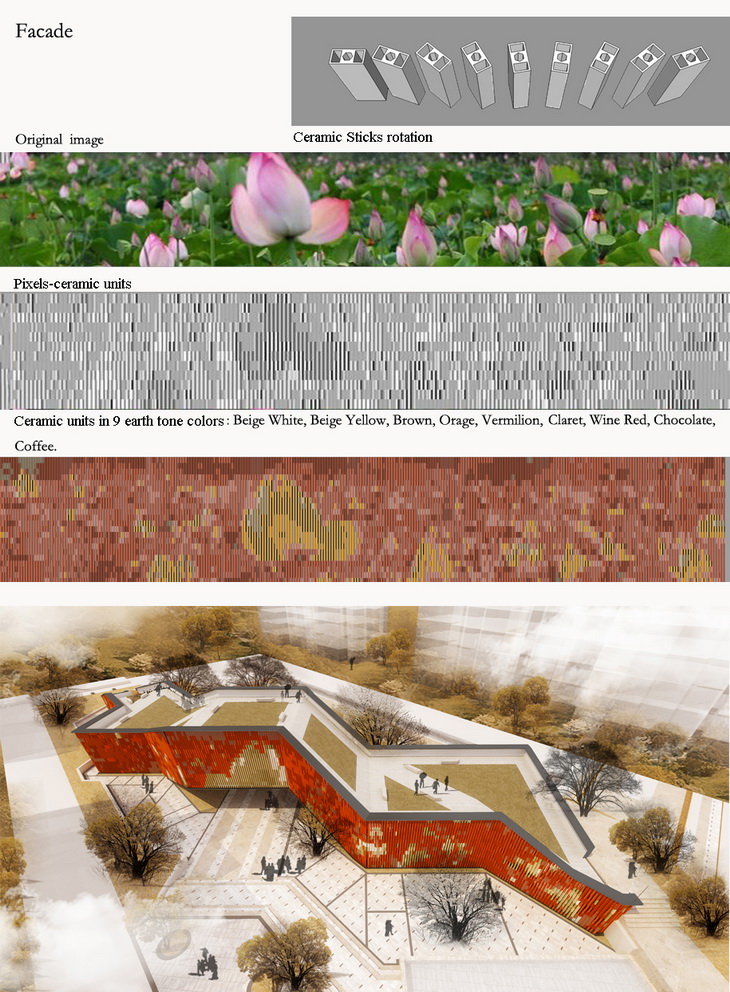

The curved wooden blinds and the tangram shape take you back to the roots of the residential community. And the green living roof also merges into the environment which creates a comfortable leisure place for the surrounding communities.

Tangram UA Studio 7Tangram UA Studio 7

Project: Tangram pavilion No.1 – Mao Zhuang South Club
Designed by UA Studio 7
Director: Yang Lifeng
Project Manager: Zhou Jungang
Project Team: Vlad Dodan, Zhang Ke, Zhang Guo Fang, Li Dong, Li Yao Jian, Wu Yu Chang, Yin Shanhong
Total Ground Area: 398 m2
Built Area: 298 m2
Floor Area: 298 m2
Max Height: 6 m
Location: HeNan, China
Website:  www.uachina.com.cn
