The station of Oostende by Dietmar Feichtinger Architectes

By  |

The station of Oostende by Dietmar Feichtinger Architectes

Dietmar Feichtinger Architectes recently completed works on the Oostende Station Environment Master Plan in Belgium. The project includes the renovation of the platforms, the platform roof and the pedestrian bridge over the tracks.  The architects  replaced the outdated canopies with a new roof. The height of the awning creates a spacious public rail hall and forms a modern version of the historic side hall.  It is constructed from a column grid in steel above which a shed roof structure, filled in with polycarbonate plates, protects the platforms from rain. The colored, translucent polycarbonate provides a filtered play of light and color under the roof. The structure also serves as confirmation for various technical installations specific to train traffic. Discover the complete story after the jump.

From the architects:

A station by the sea

It is more than a hundred years since King Leopold II had the current Ostend station built. A bourgeois building with a magnificent architecture, worthy of the “queen of seaside towns”. Just like the city, the station has also expanded. It has become a popular transport hub, where thousands of passengers find their way every day to take a train, tram or bus, or a ferry or cruise ship.

For these many travelers, an increasingly complex infrastructure has developed over the years to provide a confusing mix of buildings and parking lots. This limitation makes it impossible to pursue development as more and more people use public transport. Therefore, the project partners are investing in the renovation of this station, with its unique location right by the sea. They are making this seaside station a leading transport hub.

A large-scale project called “station aan zee” started in 2012 to renovate and revitalize the station and its district.
It provides for:
– the reconstruction of the car parks and tram station
– the renovation of the station, without violating the building’s classification
– the construction of new platforms
– the construction of a large canopy covering the platforms, tram and bus station and bicycle parking
– the demolition of part of the waterfront buildings, which have become too large, in order to create pedestrian access
– the destruction of the tram depot and its relocation to a former port area
– the beautification of the station square

As the remaining walls of the exit room were classified, it was decided to demolish the roof and other walls and to keep the only classified wall, without a roof. The new canopy partly spans this old wall. The old tram station was demolished in 2019.

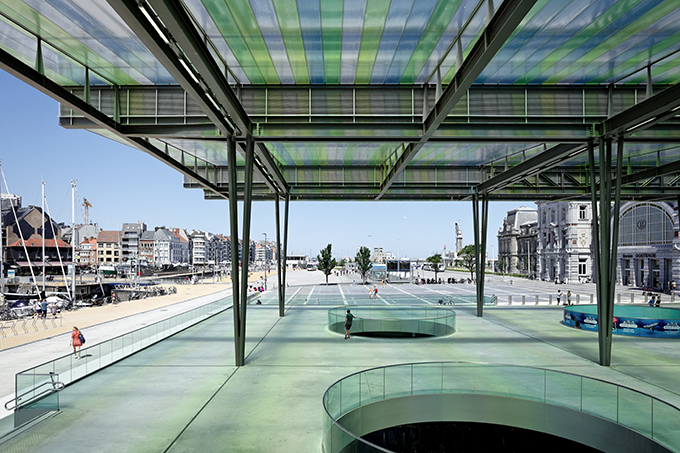

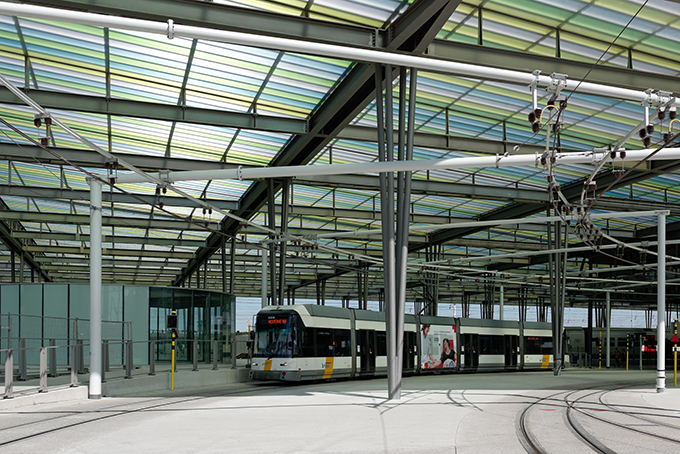

The bicycle parking is now underground with a series of round atriums overlooking the space between the platforms and the station building; the tram station is closer to the train station and a multistorey car park has been built along the train platforms.

The new station of Oostende -A dialogue enriching the urban composition

The Albert I promenade, the port atmosphere and the large cargo ships, the large Maria Hendrikapark are all elements that give the City of Oostende a special atmosphere and image, spaces of great scope.
The landscape impact of the new project – a tense “canvas” linking different uses – is strong and consistent within this context. By its size and unity, it enriches the whole. It is an extension whose scale corresponds to the urban scale.

The appearance of the existing building corresponds to the station’s status, its institutional aspect gives it a major presence:

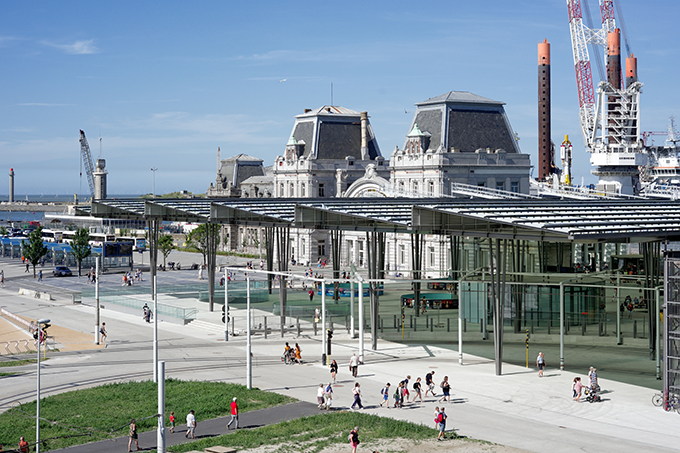

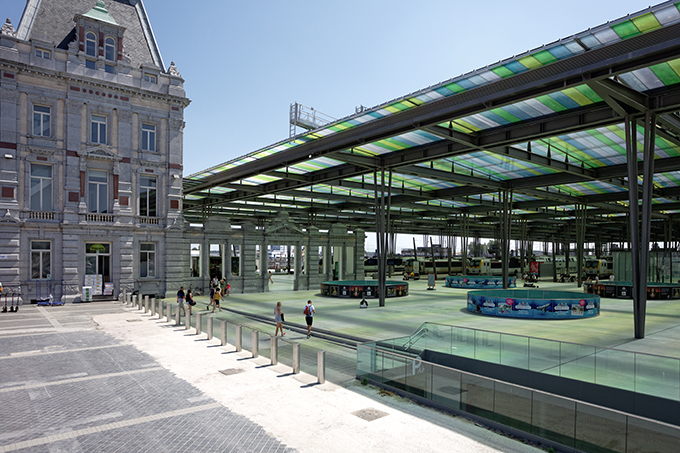

It is a dialogue between two entities that has been established, between the imposing architecture of the existing building, facing the port and the Town Hall, and the generosity of the large roof.

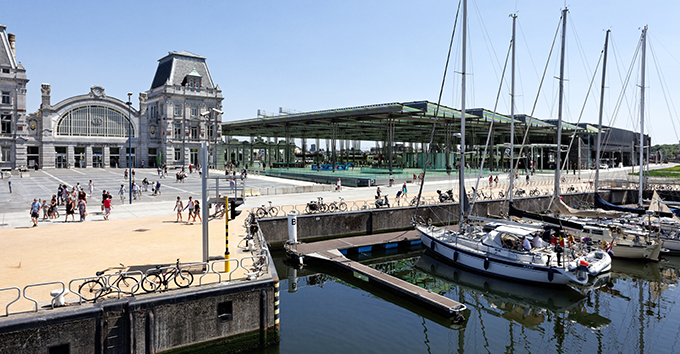

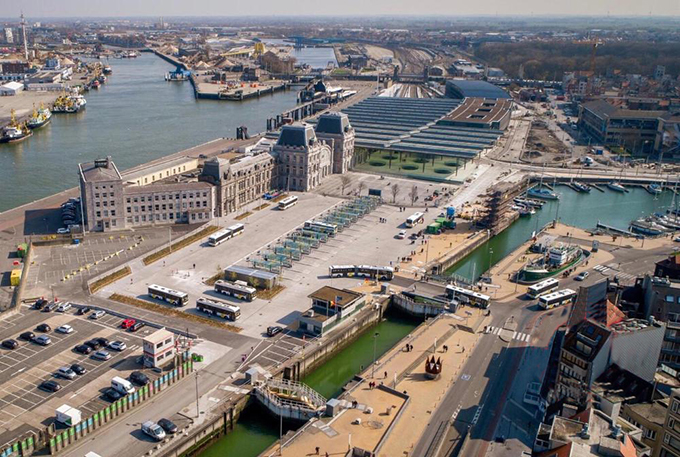

The station square opens towards the city. It is a large space on the harbor. It integrates bus stations, tramways, bicycle parking and becomes a true multimodal platform for users.

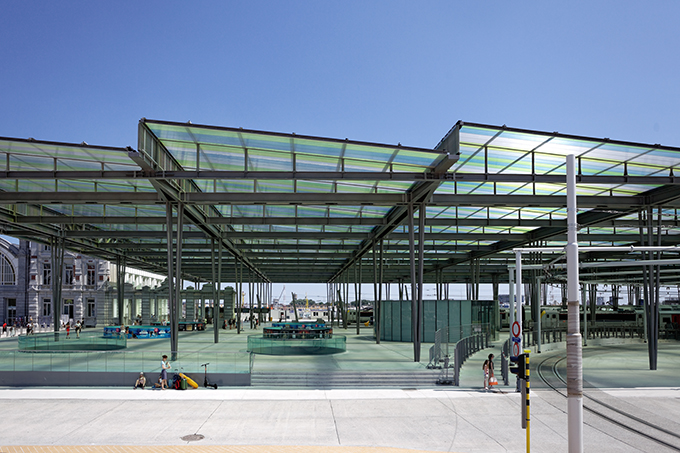

A light and transparent canopy

With the new impetus it brings to the district, to the city, by its generous extent, the new roof is in its expression refined and transparent. Its vocation is to cover, to connect and to unite, with lightness.

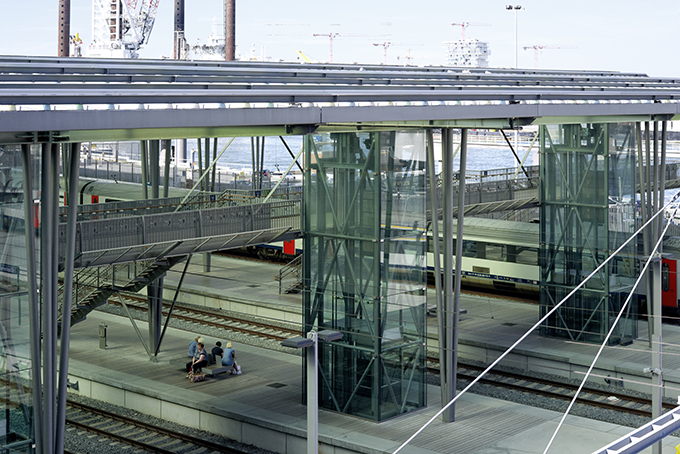

Under the roof all functions are naturally integrated.Stairs, elevators and the footbridge are suspended from it.
Taking advantage of this shelter, the intermediate accesses remain light and airy, to provide pleasant visibility from both sides under the roof, from the hall and the platforms.
The station installations are suspended, such as signage, billboards, electrical installations. They free the floor space in the hall and on the platforms.
The continuity of the travelers’ journey is enriched by this visual clearance, this unique space.

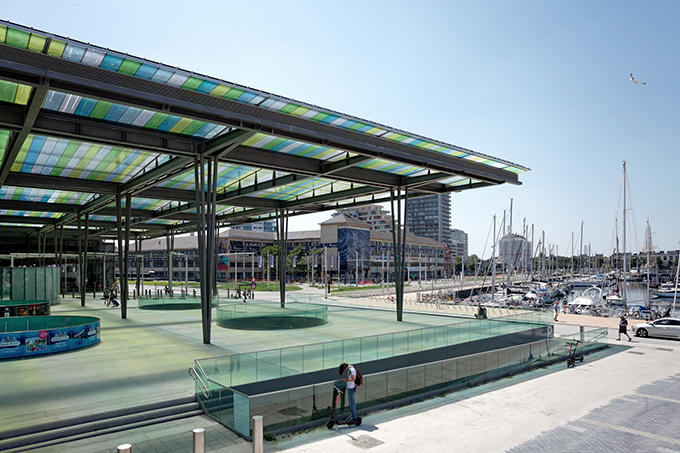

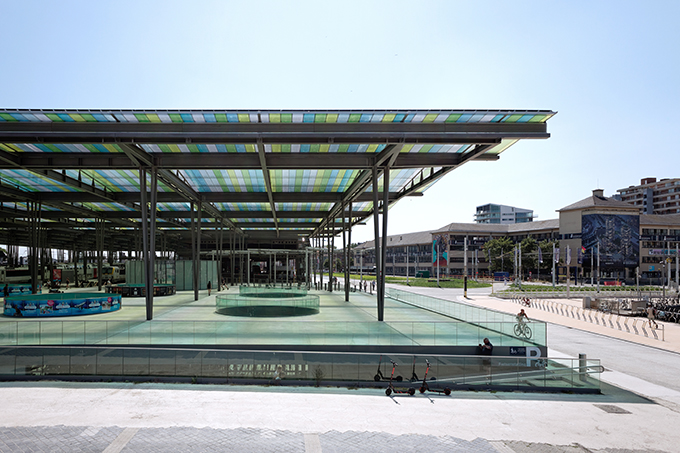

In conjunction with the station square to the west, the bicycle parking lot is installed under the roof. It is located on level R-1 and is largely open with a series of round atriums providing natural lighting and ventilation.

Colorful scales

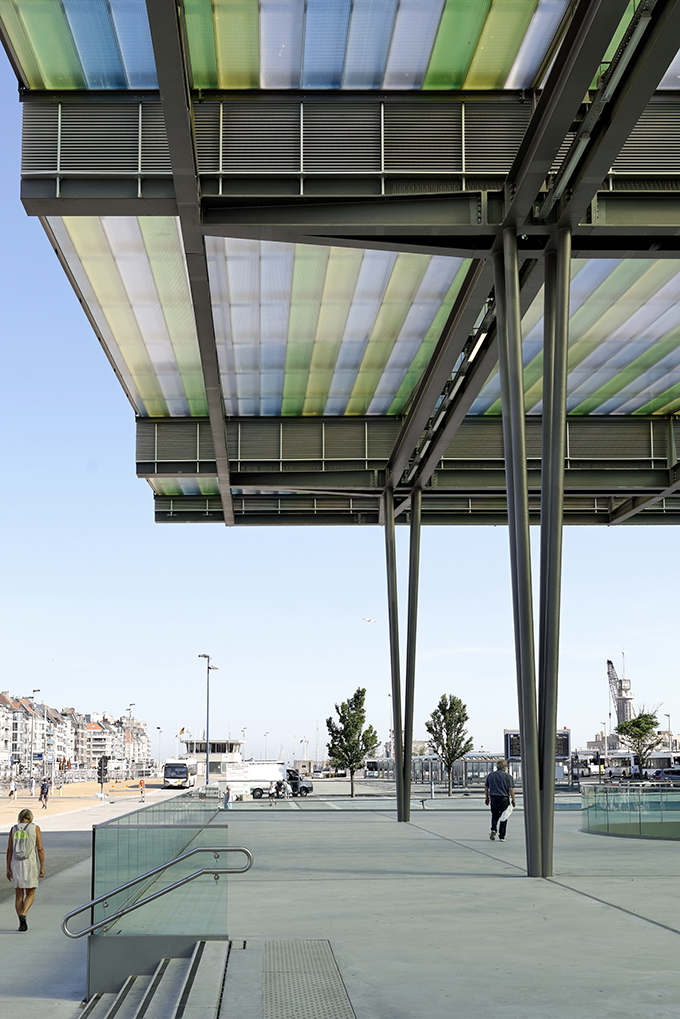

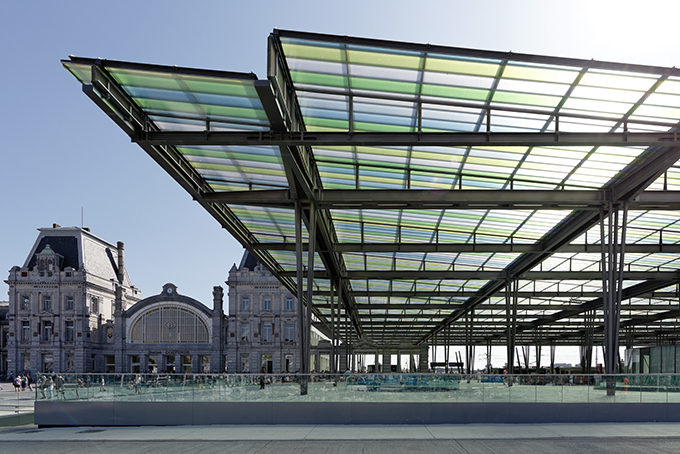

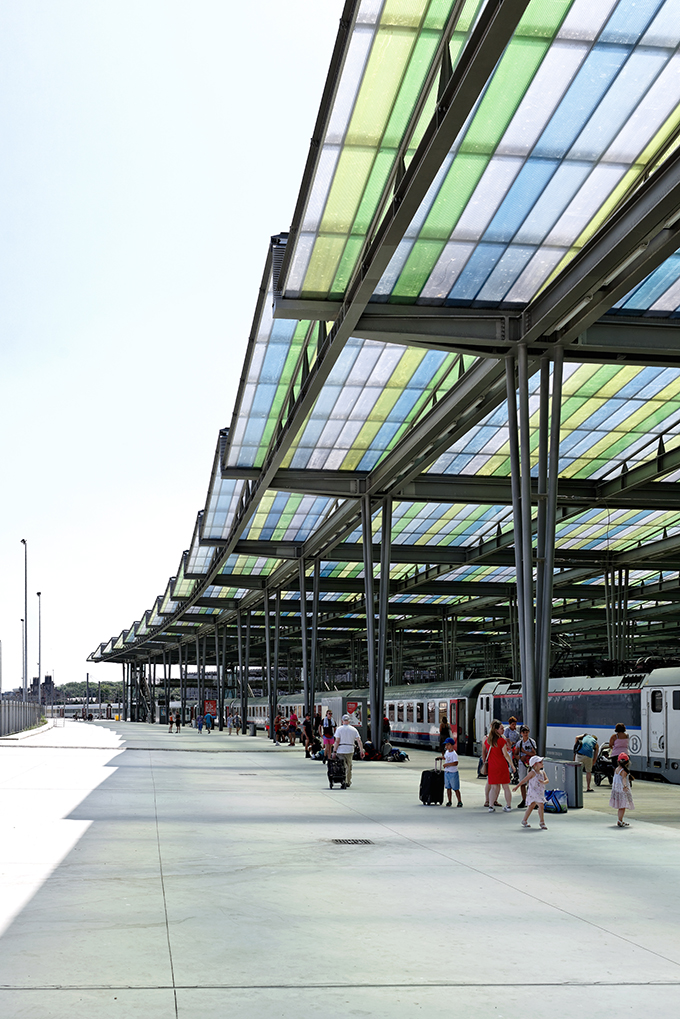

The roof consists of polycarbonate panels placed on a steel structure. The impact of the structure on the platforms and the hall is minimized.

The translucent panels offer a bright and welcoming atmosphere. Arranged in scales, they allow in the interstice an effective natural ventilation. This composition in sheds gives a movement to the roof and makes it airier.

There are many variations of light under the roof, depending on the exterior brightness and the color scheme. This specificity contributes to the identity of the place.The coloring of the polycarbonate also provides sun protection and avoids direct glare.

The roof extends to the existing station. Adjacent to the new hall, this space on the ground floor is equipped with kiosks.

RELATED: FIND MORE IMPRESSIVE PROJECTS FROM BELGIUM

The public toilets are installed in the basement and accessible from the platform level by a staircase and a lift located to the east of the existing building.

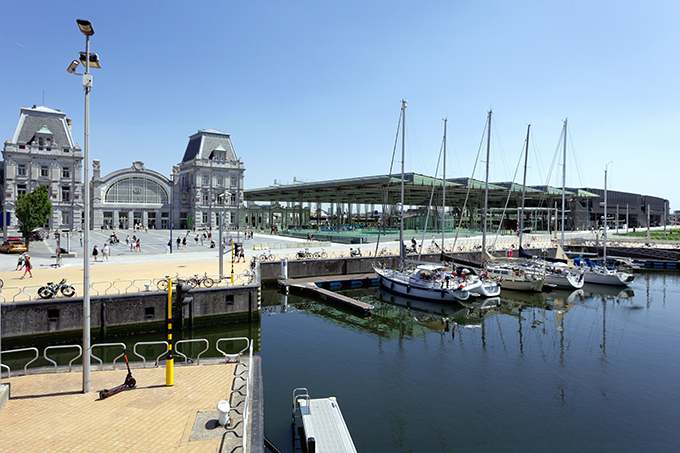

Thus, the space offers transparency from the station square to the platforms in the foreground and then to the port and ferries.

A bright atmosphere during the day and night

As during the day, it is through the roof that the space is lit at night.
The lighting of the car parks is located inside the building, at night the volume becomes a luminescent landmark in the city.

Future densification

The project is developing horizontally, supporting this canopy idea.
An unobstructed view of the marina and seaport is available to users.
The 32m deep office floor includes interior patios and accessible terraces. All spaces are naturally lit.

A continuous structure

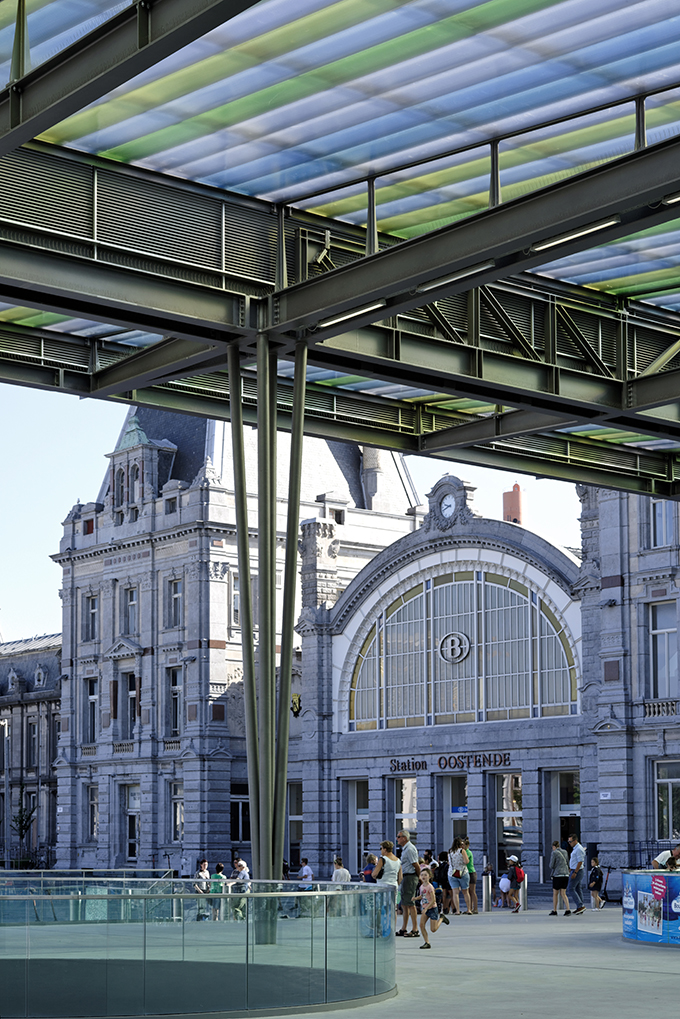

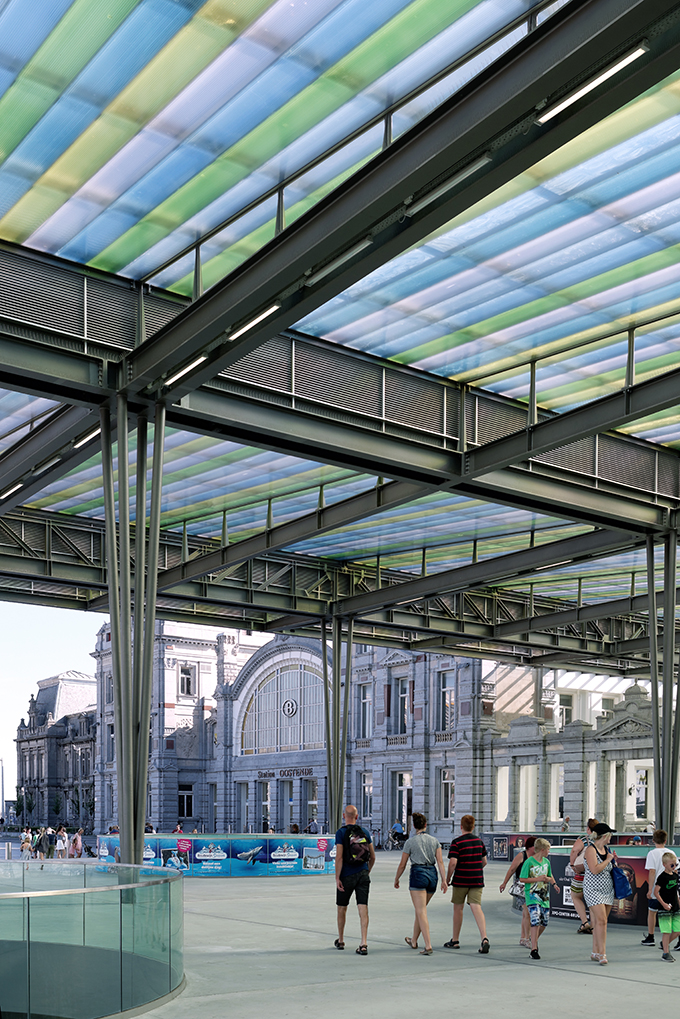

The metal structure of the roof consists of slender piles, four tubes that meet on the base (welded junction). They are embedded into the roof structure and form a beam. The base of the slender piles is articulated. The structure is blocked at the linking bridge leading from the parking to the platforms. This allows temperature expansions in the longitudinal direction;embedding moments are avoided accordingly.

The structure is made up of main beams andtransverse-beams with aninteraxial distance of 15m, formed by double I-shaped profiles. These reconstituted profiles allow the integration of channels and electrical networks.

The roof structure forms a rigid plate. By the slenderness of the piles and their flexibility, thermal expansion is absorbed. The roof forms a diaphragm, an expansion joint along the car park allows differential deformations due to temperature.

Cross beams spaced 5 m cross this structure to support the joists supporting the polycarbonate sheds.

The integrated parking

Installed along the platforms to the west, is a structure including the parking lot that ends the station.
It includesthe tramway platforms. In this part of the building, two levels overlap in proximity to the existing building: a parking level and a level of offices allocated to SNCB’s administrative services. The offices are organized around interior patios.

A two-storey building is located south of the tramway platforms housing services from De Lijn and SNCB.Changing rooms are installed in the basement of the building. A largely glazed facade opens onto the city. The building is strategically located in relation to the platforms. It is in immediate proximity to the link gateway to access the parking.

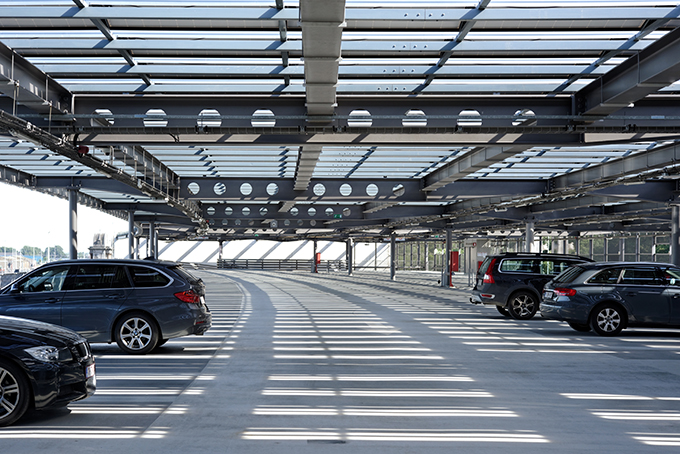

The southern part of the parking building has 4 levels of parking. Vehicle access is to the south. A circular ramp connects the floors.Pedestrians access from the square, the platforms are directly accessible from a connecting bridge. The south part of the roof is completely covered with photovoltaic panels.

The car park has 670 parking spaces.It consists of a metal structure in continuity with the canopy structure grid. Vertical connections – open stairs – punctuate the building.

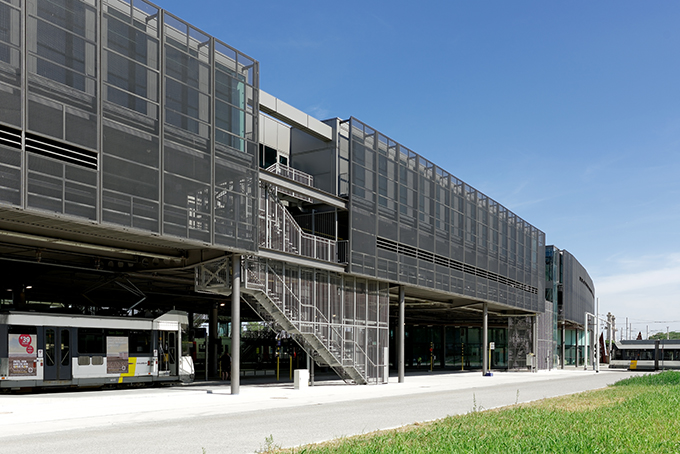

This long building forms a facade towards the city. It is an open-air car park and open onto the tracks.

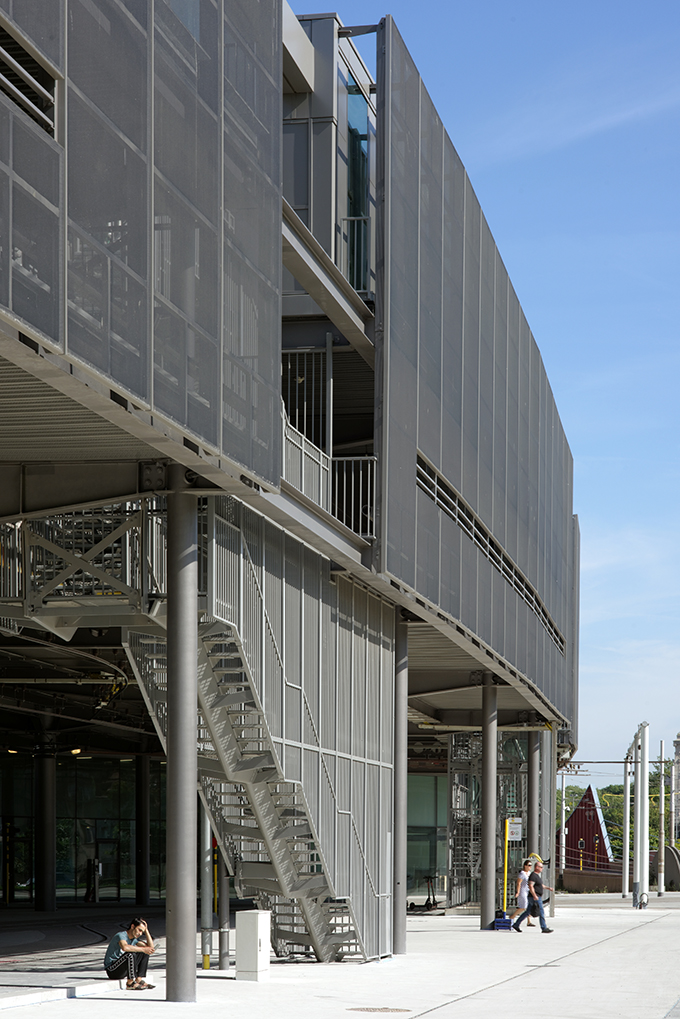

The metal mesh provides natural ventilation for the car park and serves as a filter towards the city. Because of its continuity it provides sun protection.

Horizontal openings allow framed views. In the office area, a curtain wall façade closes off the spaces. The continuity of the mesh on the façade constitutes also the sun protection.
The patios and east facade are equipped with removable blinds.

At street level, vertical metal rods close the building to the public space. The rods extend around the stairs and form the lower closure and partial guardrail of the stairs.

The supporting structure of the building is made of steel. Collaborative slabs composed of a steel tank with a concrete slab – form the floors. The posts are circular. The embedding of the central posts serves as a bracing.
In the office area the structure is protected by an intumescent paint.

The composition of the access ramp is identical to the floor slabs. A lattice structure at the top supports the suspension rods of the lower part of the ramp.

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes

The station of Oostende by Dietmar Feichtinger Architectes
Photography by David Boureau

Address Ville d’Oostende, Belgique
Client NMBS-HOLDING : parking voitures velos moto et couverture gare / parking cars bycicles and motorbikes and canopy
De LIJN : parking bus et Tramway
Architects: Dietmar Feichtinger Architectes
Team competition: Claire Bodénez, Michael Felder, David Gregori y Ribes, Iwona Borkowska, Dorit Böhme , Marcus Himmel, Annalena Jost, perspectiviste/ 3 D Silviu Aldea
Planning team: Gerhard Pfeiler, Robert Grimm
Structural consultant: Technum, Concours
Leiepark 18 9051 Gent
Eurostation, Etudes et Réalisation
Total surface parking: 20 320 m2
Parking 640 cars and 19 140 m²
Parking 110 motorbikes
Parking 771 bicycle1162 m²
Shop area: 1 590 m²
Offices: 100 m² for the station
Roof covering surface in total: 22 000m²
Parking bus and tramway: 17 000 m²

Competition 09 | 2006
Start of planning 03 | 2007
Start of construction 05 | 2010
Completion 2016 completion car parking, new hall, bus station and bicycle garage
2017 completion tram station
2018 completion train platforms and canopy
2019 completion urban layout in front of the station by the City of Ostende
Building costs Total 37 300 000 € HT

Evironnement Features HQE Démarche
Toiture en polycarbonate translucide recyclé et recyclable
1700 panneaux photovoltaïques sur la toiture parking
Production 520 000 kWh/an
