Capitec Bank Headquarters by dhk Architects

dhk Architects have designed the innovative new headquarters for Capitec Bank

Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch

dhk Architects have designed the innovative new headquarters for Capitec Bank, one of the largest banks in Africa. The sinuous three-storey building is clad in white aluminium and features ribbons of fenestration. The architecture is defined by the dynamic interior which has been designed to foster a company culture of creativity, innovation and collaboration with a large emphasis placed on optimising internal flow. Striking and otherworldly, wide open-plan floor plates loop around the periphery of the atrium which are connected by a series of dramatic bridges and staircases. Discover more after the jump.

Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch

From the architects: Capitec Bank, one of the largest and most progressive banks in Africa, has unveiled its innovative new headquarters, iKhaya, meaning ‘home’ in Xhosa. Designed by multidisciplinary studio, dhk Architects, the three-storey curvilinear building is defined by its dynamic interior architecture,which embodies the company’s progressive outlook and embraces the concept of agile working. Striking and otherworldly, dhk’s holistic architectural approach considers both the exterior and interior to optimise corporate expenditure, internal flow and sustainability – demonstrating that commercial offices can be innovative and cost-effective while driving operational efficiencies.

Capitec’s success and growth overtime meant that the company came to occupy numerous offices. These offices were geographically dispersed, resulting in departments becoming increasingly isolated from one another with the need to move between buildings to meet face-to-face. Consequently, Capitec opted to consolidate its staff and facilities into one operationally efficient headquarters. Located in the scenic Cape Winelands in South Africa, a key driver of the design concept involved capturing panoramic vistas and drawing the landscape within.

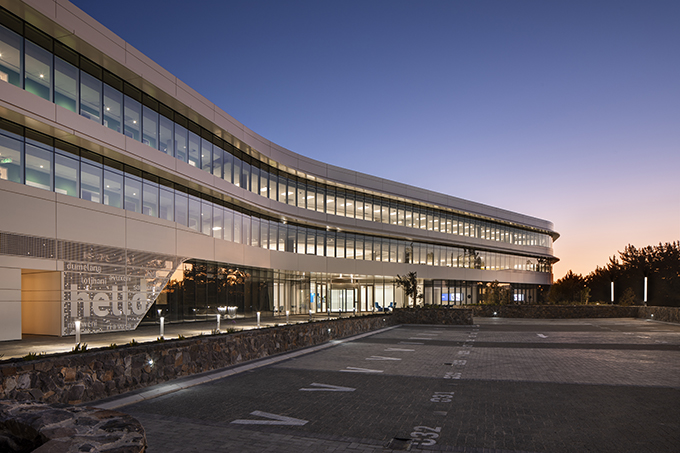

The building form optimises the shape and size of the site while referencing the brand’s distinctive curved logo. The three-storey superstructure wraps around itself, which creates a unique ‘doughnut’ shape and forms a central triple-volume atrium – an internal ‘social spine’at the heart of the building. Contributing to the contemporary appearance, white aluminium panels clad the building’s sinuous form which is further accentuated with continuous ribbons of fenestration.

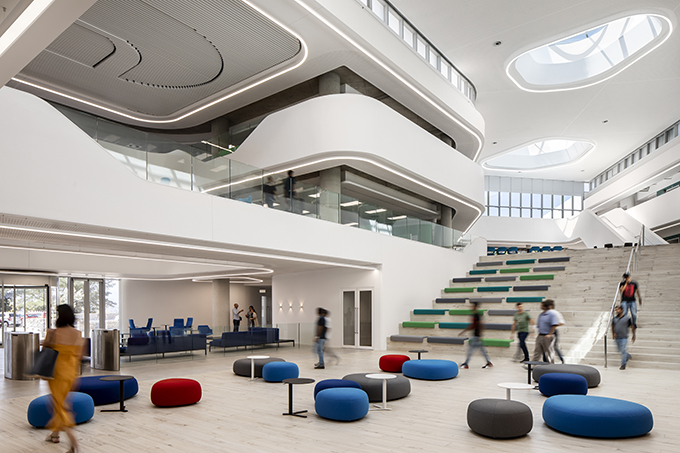

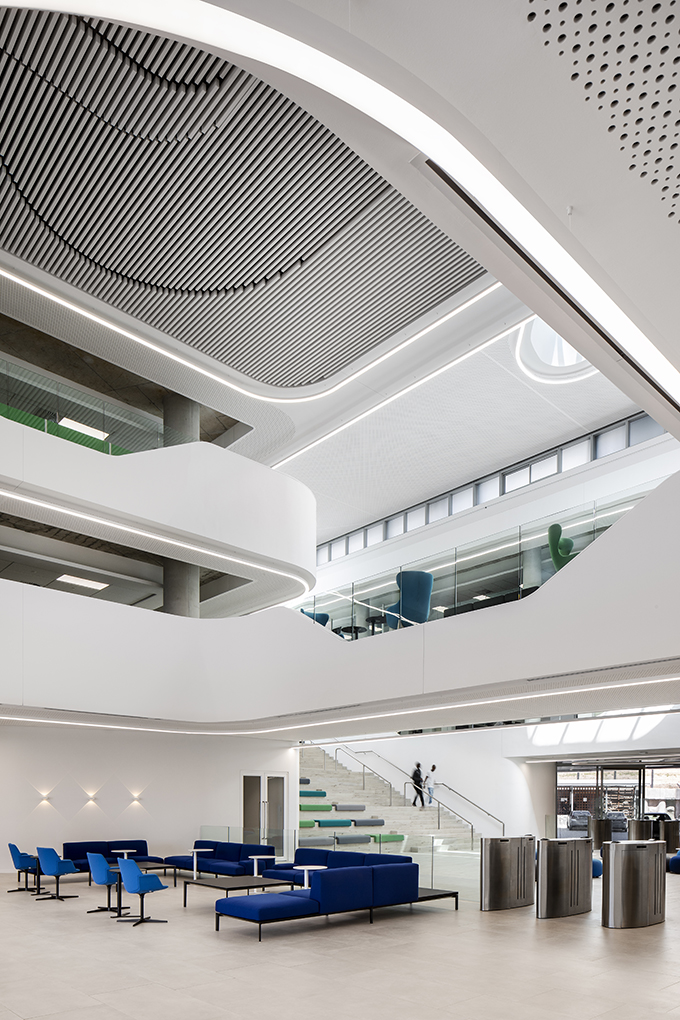

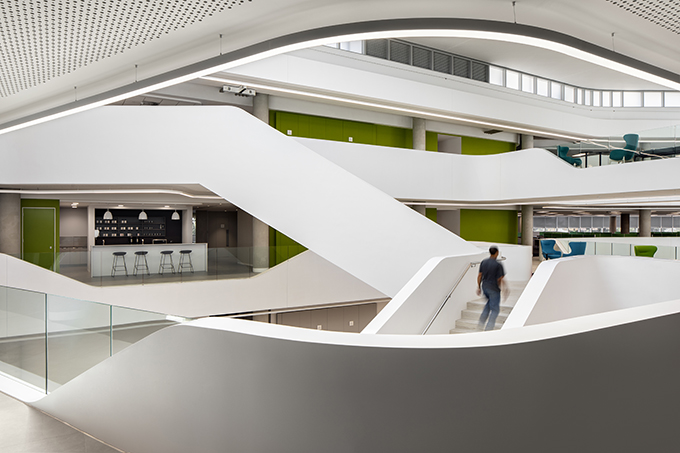

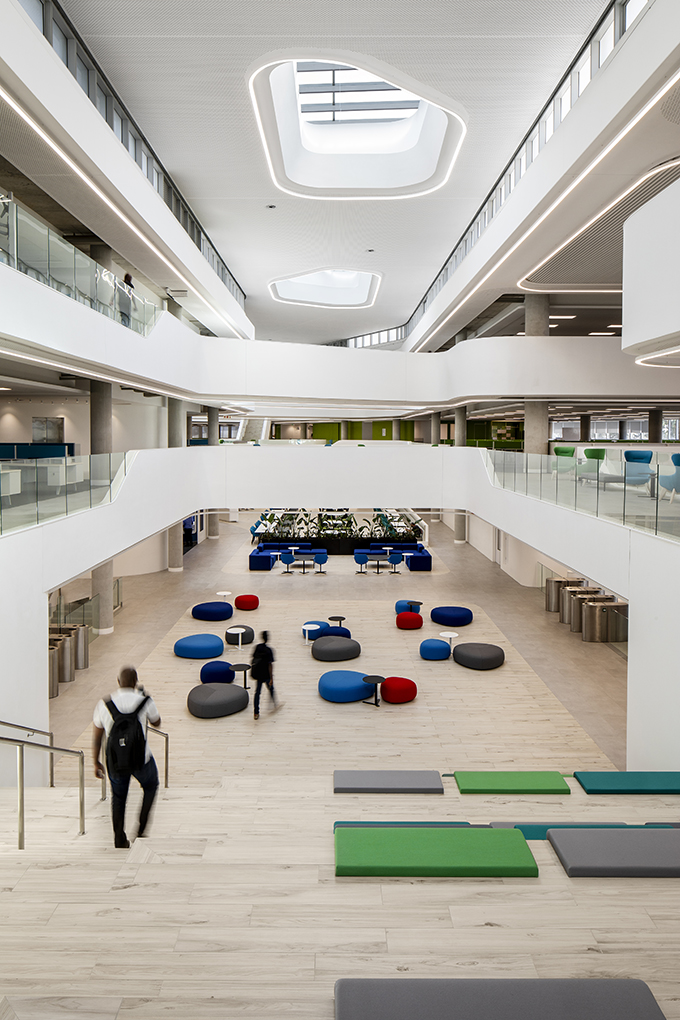

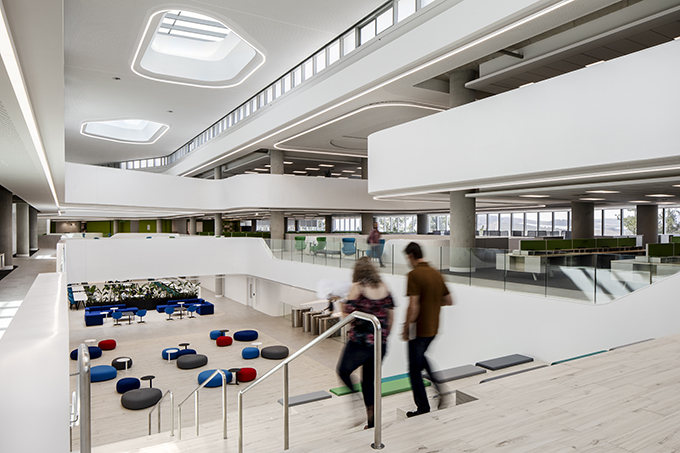

Internally, the design resonates with the company’s progressive outlook – ensuring guests and staff unequivocally feel the spirit of the brand throughout the building. Once at reception, visitors are greeted by a generous triple-volume space that immediately showcases the sophistication and simplicity of the interior architecture. Wide open-plan floor plates loop around the periphery of the atrium which are connected bya series of dramatic bridges and staircases. This was an intentional design element which inter-connects the various departments, creating opportunities for chance collaborative encounters and personal interactions.

Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch

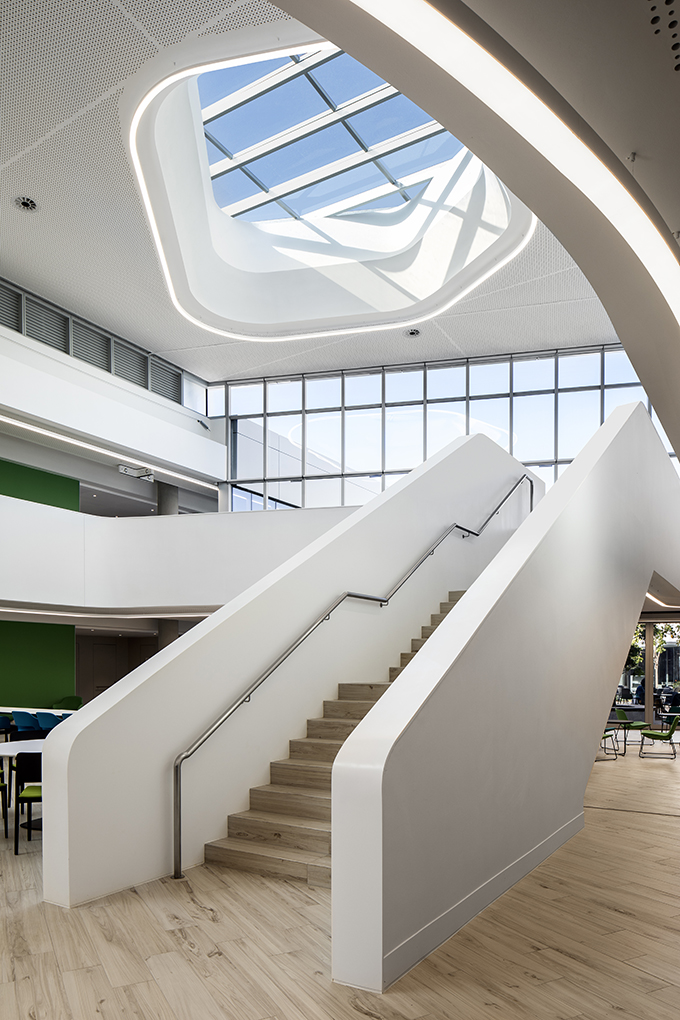

Reinforcing Capitec’s brand identity, the company logo is embossed into the ceiling above reception. Overhead, clerestory windows and large roof lights ensure plentiful natural light and further facilitate the connection to the outside world. Meanwhile, touches of timber have been added throughout the office to introduce a feeling of warmth.

The new headquarters by dhk fosters a company culture of creativity, innovation and collaboration with a large emphasis placed on optimising internal flow and departmental interaction. The first and second floors, containing the office’s open-plan work areas, are largely void of hierarchal structure and closed-off cubicles. Embracing the concept of agile working, a raised access floor throughout the building facilitates maintenance and future upgrades to services. On each level, a total of four ‘cores’,containing centralized amenities such as kitchenettes, meeting rooms, breakout areas, lockers, bathrooms and fire escapes, serve to augment the floor plates into departmental zones.

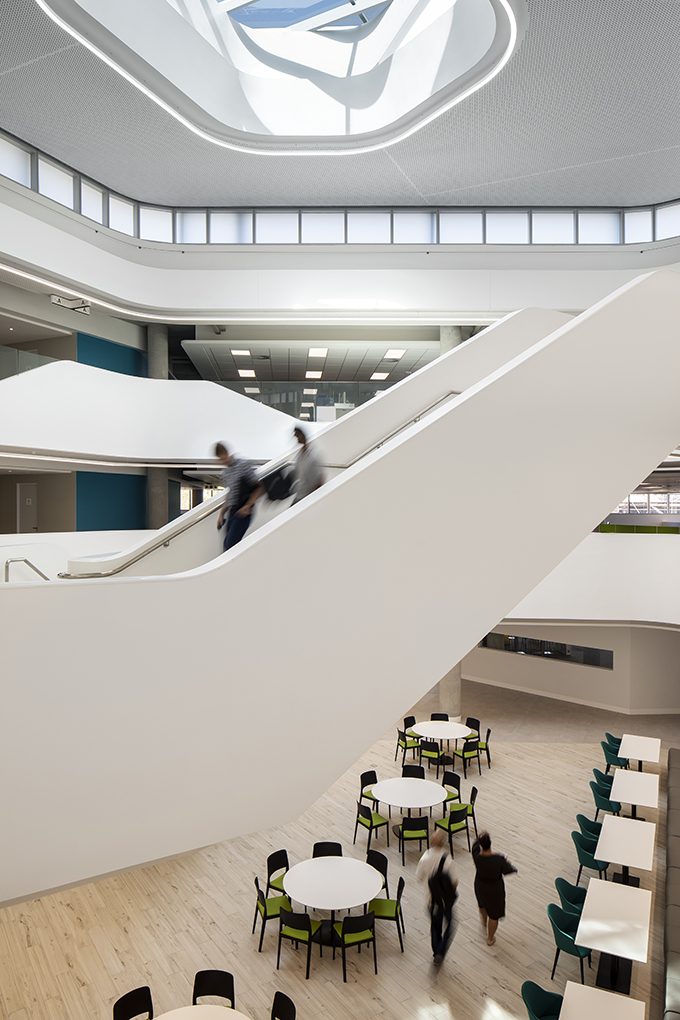

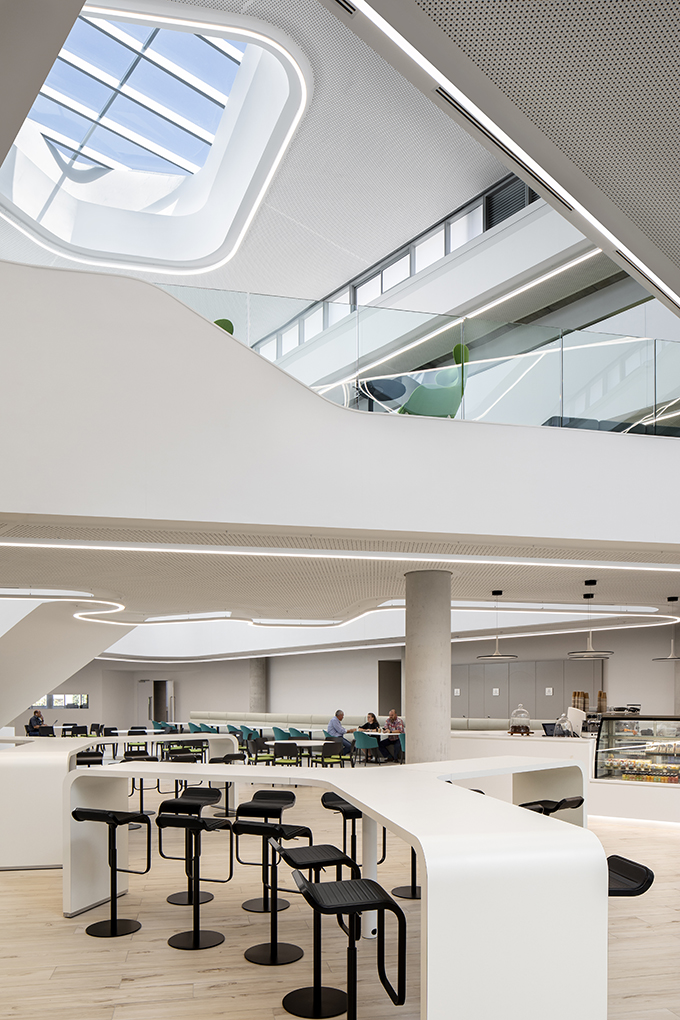

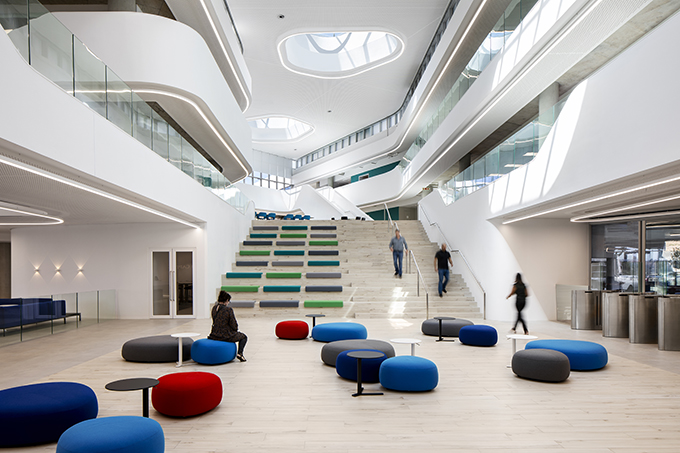

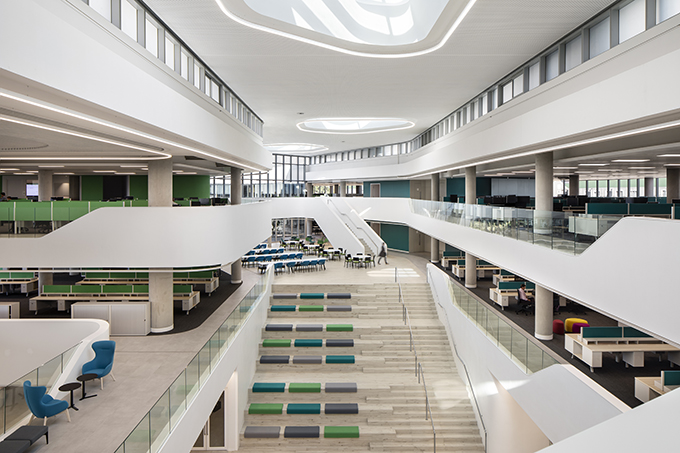

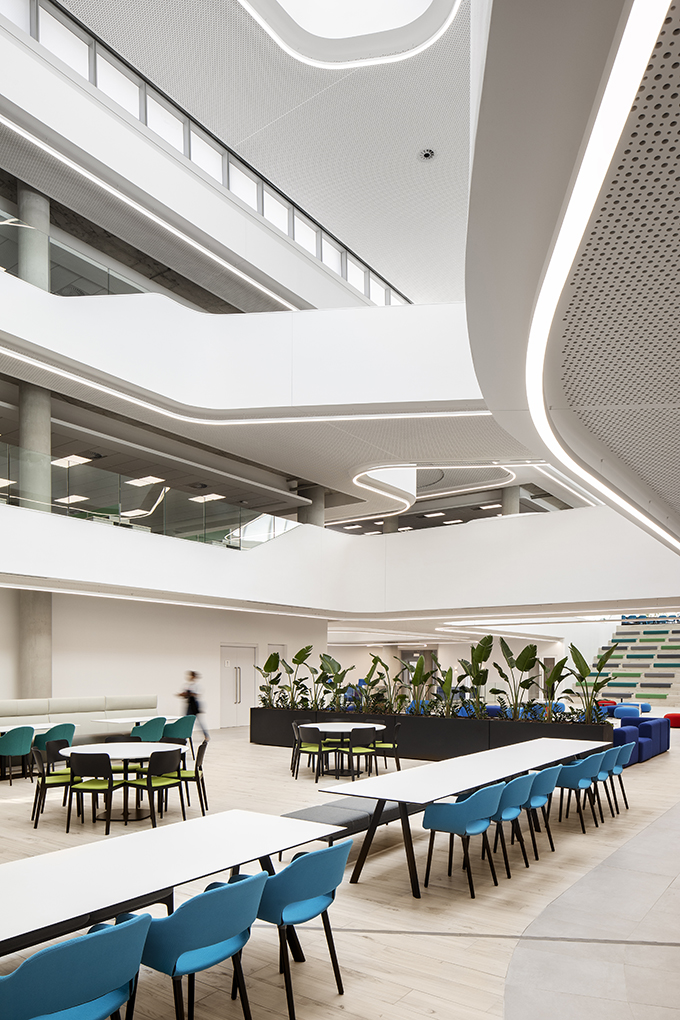

Throughout the building’s ‘social spine’ there are a variety of breakaway areas; from a large ground-floor lounge at reception for guests to await meetings and co-workers to engage, to pause areas on bridges, and an internal landscaped courtyard for staff to rest. These spaces fuel creativity and innovation by allowing employees to slip away from their resident desks to enjoy a moment of solitude, conduct a private meeting or brainstorm ideas in small groups.Not only do these breakout areas increase job satisfaction, but they boost staff productivity and efficiency. Furthermore,there is a full-service kitchen and canteen area with ample seating, a small satellite café, and a grand multifunctional stadium staircase/seating area for company presentations and talks.Other useful facilities include a recording studio, Capitec Bank branch and an ATM lab facility.

Capitec championed environmental sustainability and employee well-being throughout the building, particularly where it made sense and value could be demonstrated.Natural light is optimised viaclerestory glazing, roof lights and internal courtyard windows,while artificial lighting is zoned and activated by sensors. Environmental performance modelling directly influenced the articulation of the façade. The process informed areas of fenestration, glazing specification, glare control measures and solar shading. Performance modelling also informed the primary ordering of the internal layouts. For example, a circulation zone was provided along the external perimeter of the building to distance resident desks from sources of radiant heat. Furthermore, the thermal mass of the concrete building superstructure is exposed in various areas and the basement is naturally ventilated. Other sustainability measures include ice storage to offset peak electrical demands, a greywater system, water-saving fittings, building management system for extensive metering and monitoring, double glazing throughout, use of good quality and low maintenance materials, locally sourced materials, water-efficient heat rejection, zero ODP (Ozone Depletion Potential) refrigerants, use of low VOC (Volatile Organic Compounds) finishes, borehole and rainwater harvesting for irrigation, water-wise planting and refuse management to encourage separation of waste and recyclables.

RELATED: FIND MORE IMPRESSIVE PROJECTS FROM SOUTH AFRICA

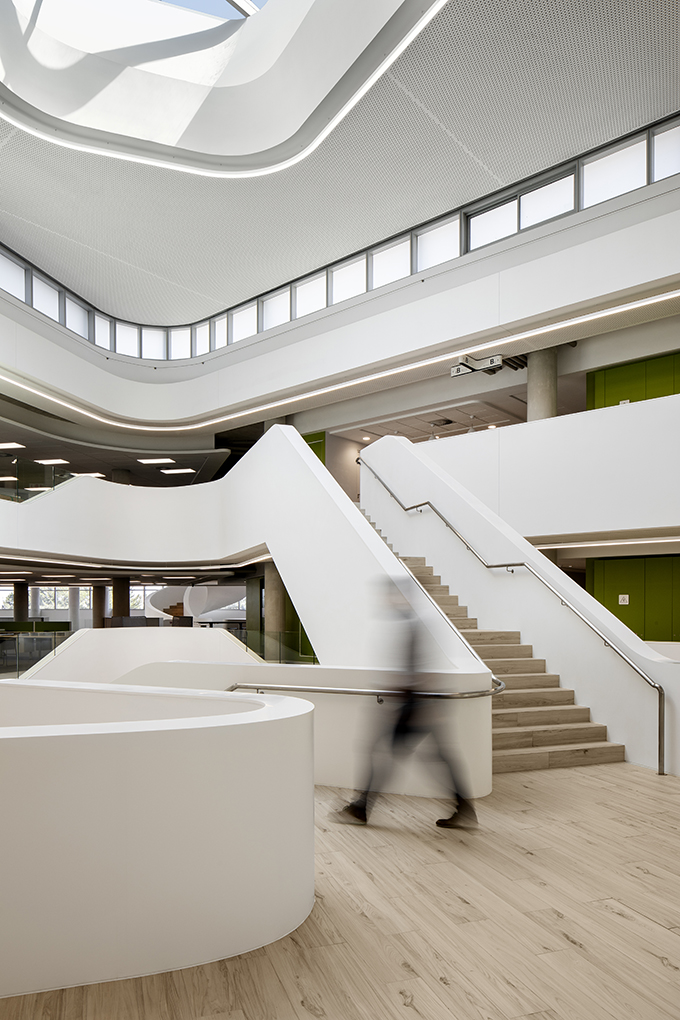

To promote employee well-being, the building is purposefully limited to only two passenger lifts for its workforce of approximately 2,000. This is supplemented by a variety of generous feature stairs to encourage walking and limit the use of confined lift spaces.As such, the fire escape stairs were designed for dual functionality; where the quality of finishes were upgraded, they serve as ‘communication’ stairs. Further promoting employee well-being and to ensure that the needs of universal access were met, Capitec engaged with a disability consultant and an acoustic specialist early on in the design process. The recommendations of both specialists were incorporated into the building. For example, sound-absorbing materials and acoustic separation between meeting rooms were included throughout the building to achieve a specified performance in terms of decibel reduction.Additionally, and beyond the requirements of the regulations, consideration of car parking locations, emergency evacuation, ablutions and vertical circulation, are all examples of how the spirit of universal and inclusive access have been addressed.

Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Photography by © Adam Letch

Furthermore, Capitec rehabilitated a neighbouring area of public open space to be used by staff and the broader community as a recreational area for activities such as walking and running. Fittingly, the building also provides cyclist facilities and purpose-designed showers.

Looking to the future, the development incorporates a car parking structure on an adjacent sitethat follows iKhaya’score principles, designed for future adaptation into an office should there be a modal shift towards public transportation and less reliance on private cars.

Peter Stokes, a partner at dhk and lead architect on the iKhaya project says, “Capitec is a renowned South African brand that highlights values of simplicity¬, innovativeness and collaboration. dhk sought to create an extraordinary, world-class office that is progressive and relevant in the South African context – designed tobe agile, drive productivity, increase operational efficiencies and ultimately reduce company operational expenditure”.

Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch
Photography by © Adam Letch
Capitec Bank Headquarters by dhk Architects
Photography by © Adam Letch

Project team:
Developer: Capitec Properties
Architects and Interior Architects: dhk Architects
Interior Designers: Collaboration
Project Manager: SIP Project Managers
Quantity Surveyor: De Leeuw Group (Stellenbosch office)
Structural, Civil, Rational Fire, Mechanical and Electrical Engineers: AECOM
Health and Safety: Solid State Safety
Landscaping: Planning Partners
Main Contractor: WBHO
Acoustic Consultant: Sound Research Laboratories South Africa
Disability Consultant: Disability Solutions Ltd
Land Surveyor: Friedlaender Burger and Volkmann
Photographer: Adam Letch
